Product performance characteristics

①Heat resistance: High temperature resistant thermoplastic resin, melting point at 343 ℃, The United States UL has approved for long-term used temperature is 260 ℃.

②Flexibility: Top ranks in the the current market of high temperature resistant resin, superior than polyimide and polyphenyl ether resin.

③Flame retardant: PEEK film with a certain thickness is self-flame retardant ability, and the combustion products are low smoke and non-toxic.

④Solvent resistance: insoluble in most solvents.

⑤Hydrolysis resistance: can be used in 200℃ water vapor for a long time

⑥Radiation resistance: excellent resistance to all kinds of radiation, can withstand high doses of gamma rays and maintain physical properties unchanged.

⑦Dimensional stabilElectrical performance and insulation performance: It has excellent insulation and stable electrical performance under high temperature, high pressure, high frequency and high speed, high humidity and other environments.ity: extremely low water absorption and linear thermal expansion coefficient.

⑧

Electrical insulating materials, pressure-sensitive tapes, printed circuit board substrates, high-temperature labels, high-speed motor gaskets, mobile phone hinge gaskets, soft surface heaters, pressure sensor diaphragms, acoustic speaker diaphragms, Thermal barrier material for lead solder.

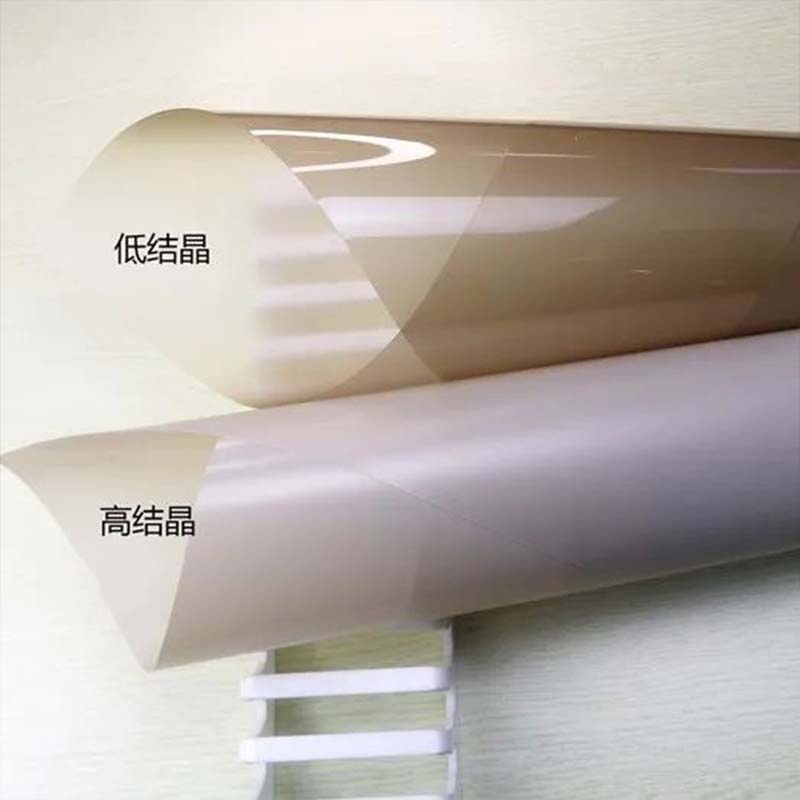

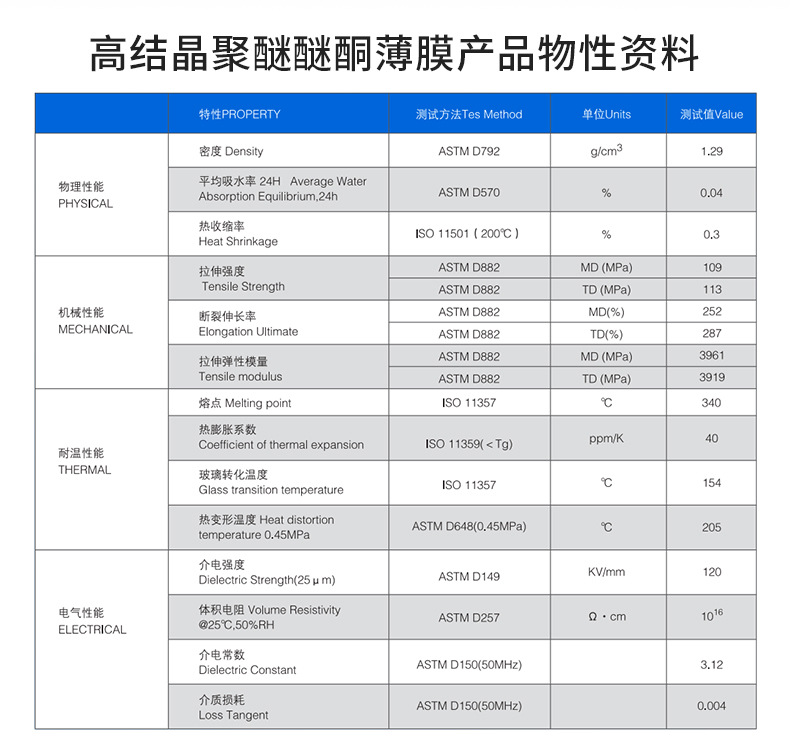

High crystalline PEEK film

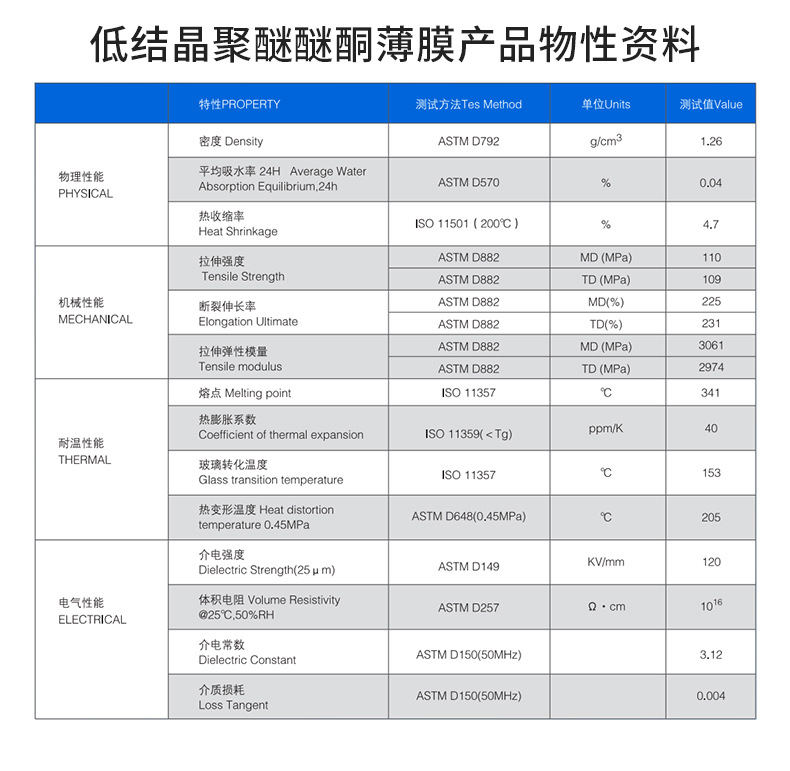

Low crystalline PEEK film
